Ibr Pbr Bir Tile Roof Panel Roll Forming Machine

Ibr Pbr Bir Tile Roof Panel Roll Forming Machine

trapezoidal majior photo

Product Description

Trapezoidal tile Roll Forming Machine Main Roll Forming System:

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Length of the main part: about 6500х1450х1500
Weight of main part: 3.8 tons
Voltage: 380v 50hz 3 phase
Roller fixer: middle plate
Frame: 350 H steel welded
Drive mode: chain
Material of rollers:45# steel, surface hard chromium plating.
Material of shafts: 45# steel
Diameter of shafts: φ80mm
Number of rollers: 16rollers
Main power: 5.5kw System

Details of IBR roofing sheet machine

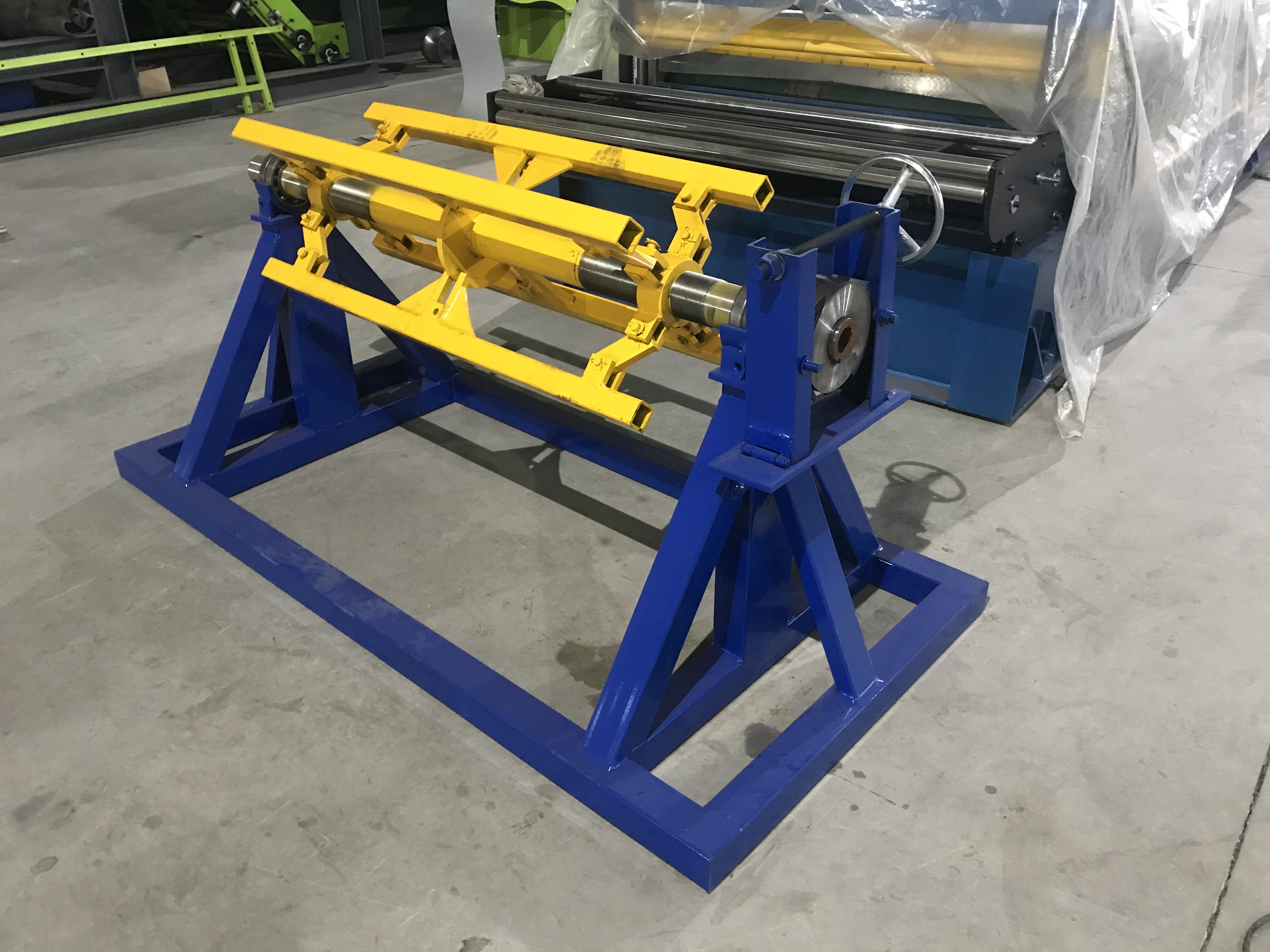

1 Decoiler system

Generally manual decoiler is standared configuration.
Its length is three meters long,it is low cost and economic.

manual decoiler

2 Main roll forming machine

The frame is welded with 500H steel.
Maily use middle plate structure to make up.
It’s convinent to transport and work.

framework

3 Feeding inlet

With the manual broach,easy to cut material and save material                             .
Has enough material
Adopt stainless lead-in rod

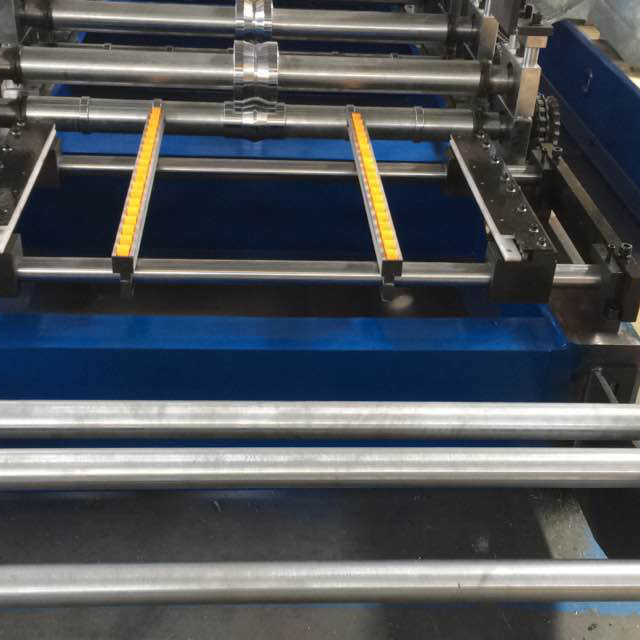

feeding inlet

4 Automatic stacker

automatic picking and automatic receiving.
Be welded with thicker plate,have long service life.
It has roller table(prevent the material surfing)

automatic stacker

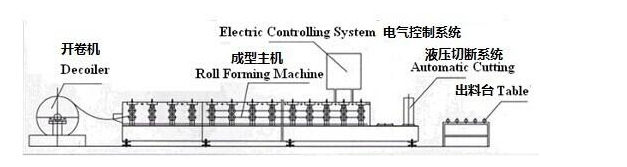

Flow Work

production process

Our Service

a. If buyers visit our factory and check the machine, we will teach you how to install and use the GEIT GROUP Roll Forming Machine for sale , and also train your workers/technician face to face.
b. Without visiting, we will send you user manual and video to teach you to install and operate.
c. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
d. If there is any problem found of steel roof sheet roll forming machinery, we will repair roll forming machine for sale for free in one year.
