Glazed tile roof panel wall board roll forming machine

Glazed tile roof panel wall board roll forming machine

Glazed roofing sheet Roll Forming Machine Main Roll Forming System:

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Length of the main part: about 6500х1450х1500
Weight of main part: 3.8 tons
Voltage: 380v 50hz 3 phase
Roller fixer: middle plate
Frame: 350 H steel welded
Drive mode: chain
Material of rollers:45# steel, surface hard chromium plating.
Material of shafts: 45# steel
Diameter of shafts: φ80mm
Number of rollers: 13 rollers
Main power: 5.5kw System:

Details of glazed tile roll forming machine

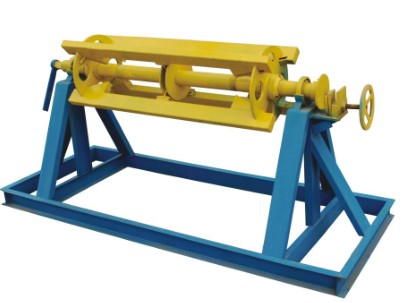

1 Decoiler system

Generally manual decoiler is standared.

It is economic and low cost.

2 Feeding inlet

adopt stainless lead-in rod can prevent the material surface.

manual broach can easy to cut material and deduce waste the material

3 Framework

the frame is welded with 500 H steel,transporting and moving is not easy to deform.

Has flying and raking,easy to transport.

4 Automatic stacker

automatic picking and receiving,save lobor and time

the length can be customized according to the specific requirements

Trapezoidal roofing sheet Roll Forming Machine Our Service:

a. If buyers visit our factory and check the machine, we will teach you how to install and use the Roll Forming Machine for sale , and also train your workers/technician face to face.
b. Without visiting, we will send you user manual and video to teach you to install and operate.
c. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
d. If there is any problem found of steel roof sheet roll forming machinery, we will repair roll forming machine for sale for free in one year.
